GCT - IP69 Connectors from Rayfast -

Rated to IP69 - even when unmated

Rayfast has introduced a new range of IP-rated connectors built for demanding environments. The range carries IP ratings to IP69 – and,
crucially, holds that rating even when unmated, so the interface stays protected whether or not a mating half is fitted.

Proven accelerated life testing backs consistent signal integrity over the connector’s service life. The range spans PCB-mounted variants alongside cable and chassis-mount units and protective caps are available for every variant for additional protection when disconnected.

5 Reasons to use GCT from Rayfast

Value Added

Range of Services

Technical

Expertise

Same Day Shipping

If received by 3pm UK time

85+

NPS Score

15,000+

Satisfied Customers

Proven over five years, not five minutes

An IP rating is a snapshot. GCT wanted to know how the seal performs after years in the field, so their engineering team built a test plan with independent laboratories to simulate prolonged use in demanding environments.

Test plan developed with independent test labs, not in-house
Designed to replicate five years of field service
Every test cycled five times over
Validated on SMA cable assemblies under combined environmental stress

Why Specify This Range?

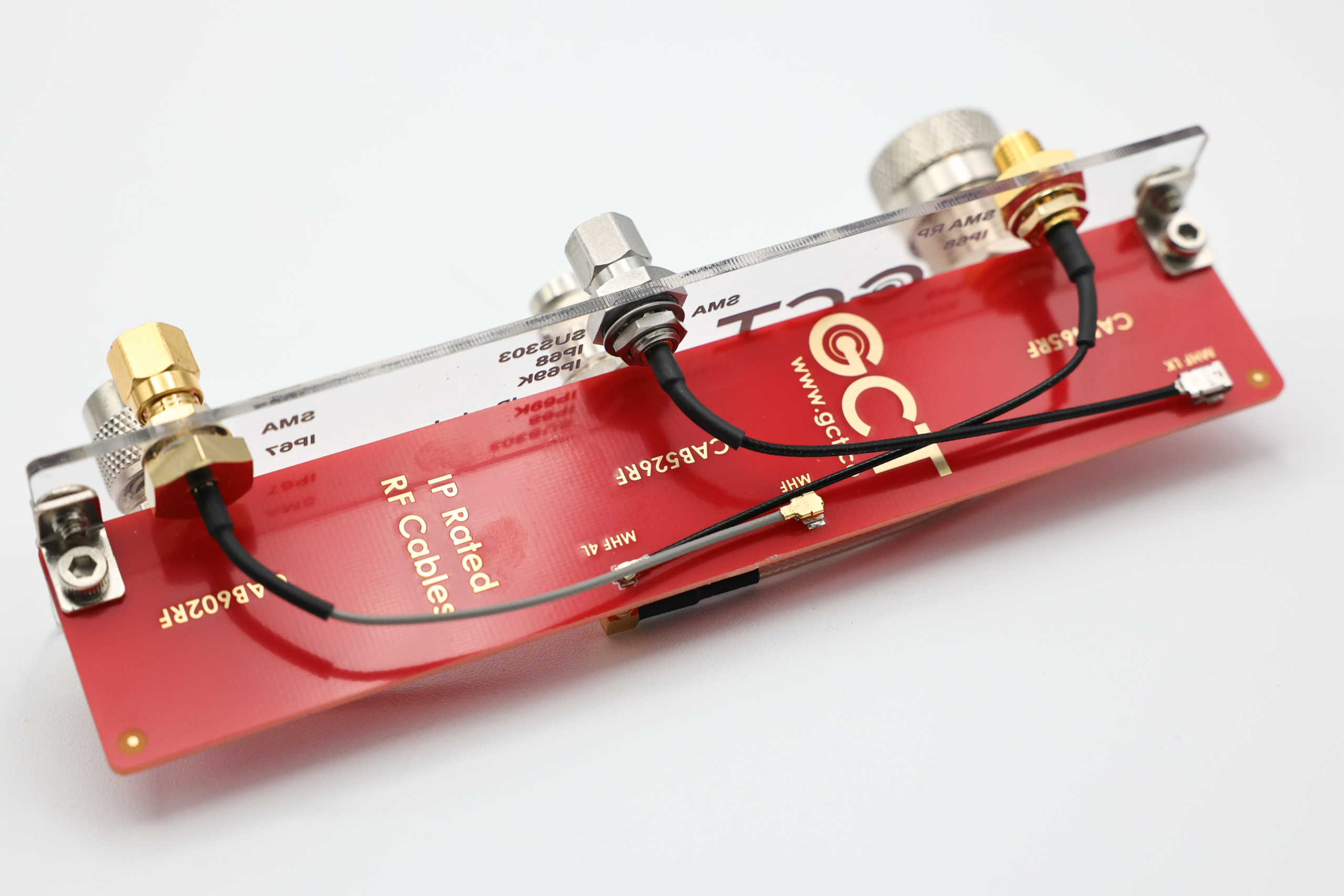

GCT IP-rated SMA, BNC, TNC and N-Type bulkhead connectors and cable assemblies

Four interfaces, every mounting option

The range covers the standard RF interfaces alongside the mounting formats a sealed enclosure actually calls for, so the interface doesn’t end up dictating the housing design.

SMA, BNC, TNC and N-Type
Front and rear mount bulkhead
Standard and reverse polarity
Flange mount and edge mount variants
Straight and right-angle orientation
Stainless steel and isolated options on SMA and TNC
Direct-to-PCB parts where no cable assembly is needed

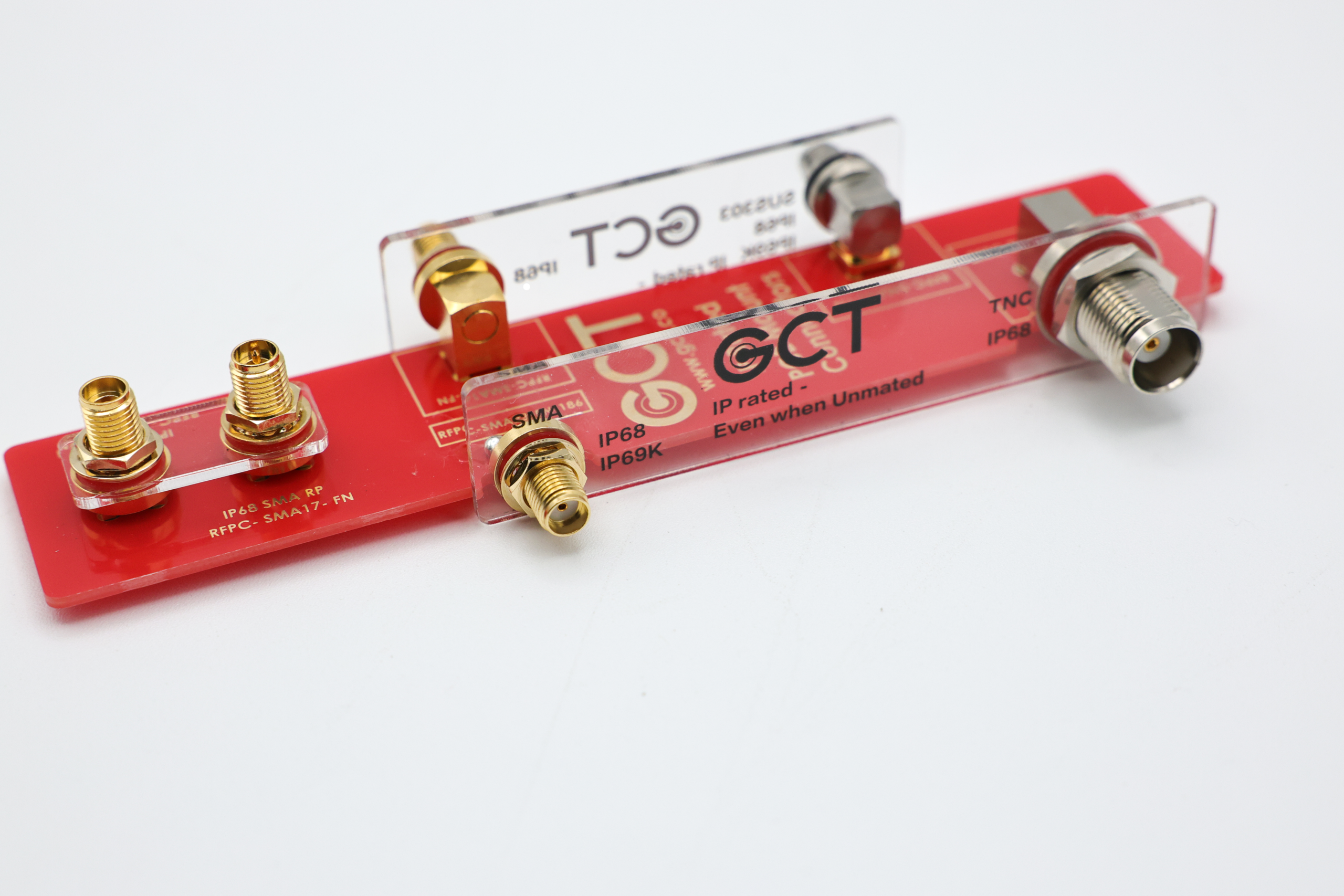

Stainless steel GCT SMA connector rated to IP69K for high pressure washdown

Stainless steel where brass gives up

Gold-plated brass bodies corrode in washdown and chemically aggressive environments. The stainless steel SMA and TNC connectors are rated to IP67, IP68 and IP69K for high-pressure, high-temperature washdown.

Sewage and waste management
Mining
Marine
Food preparation
Agri-tech and hydroponics
SMA variant available in both front and rear mount

Take a look at our new RF Cable Configurator!
