Spring-Fast Grommet Edging: SL-FST Series – The Ultimate Solution for Wire Protection in Rail and Transit Applications

Rayfast are pleased to stock Spring-Fast Grommet Edging: SL-FST Series, a game-changing solution for wire and cable protection in rail and transit applications. As the leading supplier of innovative electrical interconnect solutions, we understand the importance of reliable and efficient wire protection. The SL-FST Series offers unparalleled performance, safety, and ease of installation, making it the go-to choice for demanding transit and rail environments.

The Need for Superior Wire Protection in Rail and Transit

In the rail and transit industry, wires and cables are subject to harsh conditions, including vibrations, extreme temperatures, and mechanical stress. Without proper protection, these elements can lead to costly damage, downtime, and safety hazards. Traditional nylon grommets with adhesive application methods have long been used, but they come with their own set of challenges. The need for a more advanced solution led to the development of the Spring-Fast Grommet Edging: SL-FST Series.

Introducing the Spring-Fast Grommet Edging: SL-FST Series

The Spring-Fast Grommet Edging: SL-FST Series is a revolutionary wire protection solution that exceeds industry standards and offers numerous advantages over traditional grommets. It is fully encapsulated in a flexible non-halogen, flame retardant, low smoke, low corrosive, and low toxic thermoplastic compound, ensuring the highest level of safety and compliance with EN 45545-2 requirements.

Features and Benefits

The SL-FST Series provides a wide range of features and benefits that set it apart from conventional grommets:

1. Superior Wire Protection: The SL-FST Series offers the highest standards of performance, ensuring optimal protection against abrasion, vibrations, and mechanical stress. Its stainless steel substrate core provides superior edge retention without the need for adhesives, eliminating the risk of wire damage.
2. Cost and Time Savings: With its snap-on installation method, the SL-FST Series reduces installation time by 49% compared to grommets requiring adhesive application. This not only saves valuable time but also eliminates the need for hazardous adhesives and solvents, enhancing safety and efficiency.
3. Enhanced Productivity: The SL-FST Series improves workflow efficiency by 9.5 times, thanks to its simplified installation process. The elimination of adhesive-related tasks and curing time allows for faster and more streamlined wire protection, ultimately increasing productivity and reducing labor costs.
4. Versatility and Flexibility: The SL-FST Series offers multi-axis flexibility, making it suitable for a wide range of applications. It can be used for flanged holes, inside and outside corners, and various panel thicknesses, providing a versatile solution for different wire protection needs.
5. Excellent Performance: Designed to withstand challenging environments, the SL-FST Series exhibits excellent resistance to abrasion, water absorption, and Extreme Operating Temperatures from -40° C to +85° C. It is built to last, ensuring long-term reliability and durability in rail and transit applications.

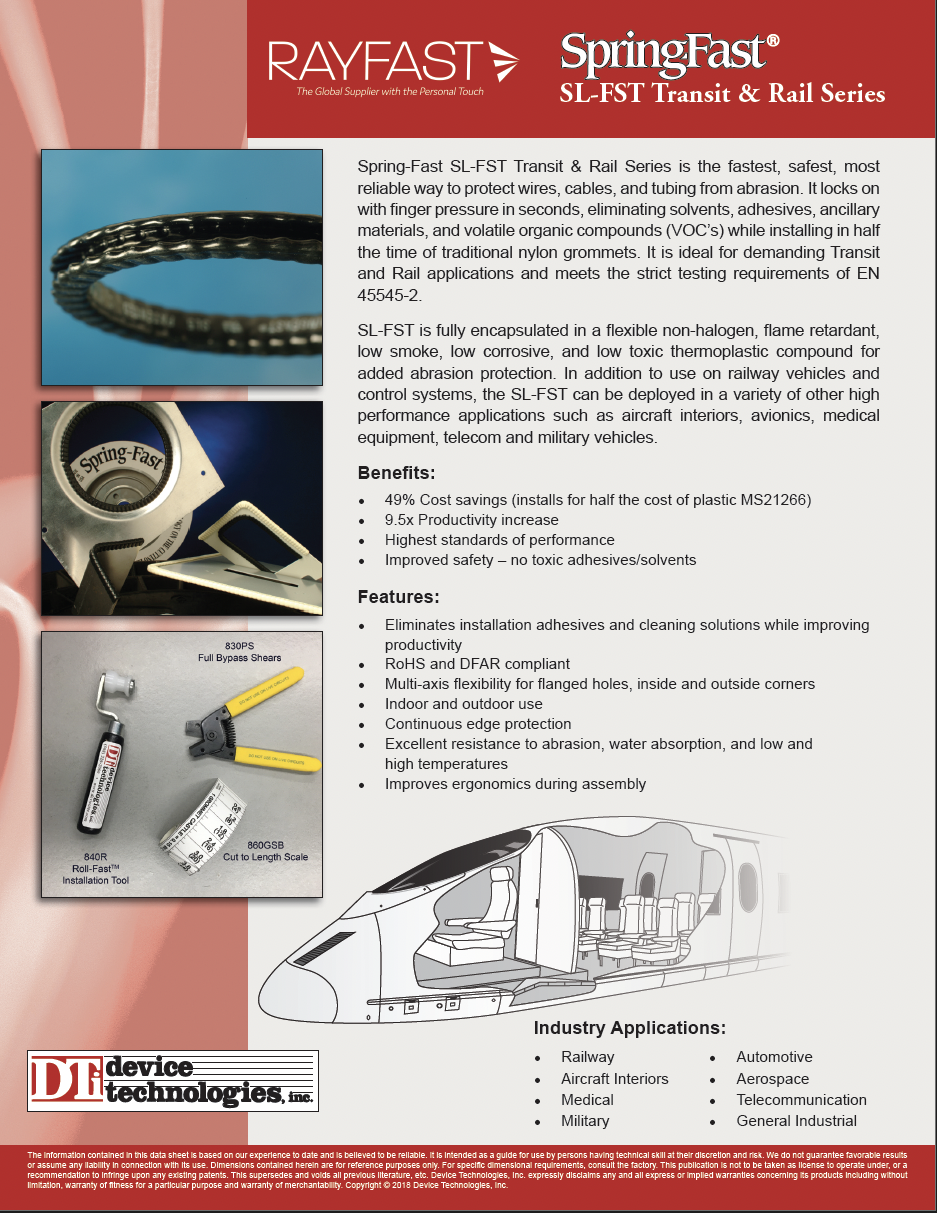

Specifications and Ordering Options

The Spring-Fast Grommet Edging: SL-FST Series meets stringent industry standards and specifications, guaranteeing its performance and reliability. Some key specifications include:

• Axis Conformity: Multi-axis flexibility for various panel thicknesses, flanged holes, and corners.
• Substrate: Stainless steel core for superior edge retention and durability.
• Finish: Flexible non-halogen, flame retardant, low smoke, low corrosive, and low toxic thermoplastic compound.
• Vicat Softening Point: ISO306 230°F (110°C), ensuring stability under high temperatures.
• Abrasion Resistance: Tested to withstand no abrasion wear, weight change, or dielectric change at 280,800 cycles.
• Flammability: Compliant with UL94 V0 and EN45545-2 standards for flame resistance.
• Toxicity: Meets EN45545-2 requirements, ensuring low toxicity levels.
• Smoke Density: Non-halogen and low smoke density, complying with EN ISO 5659-2 and ASTM E662 standards.

To accommodate various project requirements, the SL-FST Series is available in different sizes, lengths, and packaging options:

• Reels: Choose from 25 ft. (7.6m), 100 ft. (30.4m), or 500 ft. (152m) reels for convenience and flexibility.
• Factory Pre-cut Lengths: Opt for factory pre-cut lengths for precise wire protection and ease of installation.
• Bulk or Private Branded Kits: Customize your wire protection solution with bulk or private branded kits to meet specific project needs.
• Installation Tools: Enhance installation efficiency with the #840R Roll-Fast™ Installation Tool, #830PS Full Bypass Shears, #860GSB Cut to Length Scale, and other available tools.

Conclusion

The Spring-Fast Grommet Edging: SL-FST Series is the ultimate solution for wire protection in rail and transit applications. Its innovative design, exceptional performance, and ease of installation make it the preferred choice for demanding environments. With Rayfast as your trusted supplier, you can rely on our expertise and commitment to delivering high-quality electrical interconnect solutions. Contact us today to explore the full range of benefits and specifications of the Spring-Fast Grommet Edging: SL-FST Series for your wire protection needs.
